Water Rotary Unions

The Type RT-101 series is water rotary joint generally used in water service and waste water management. RotaTech Rotary Union from DN 10-50 is a self contained, self supporting rotary seal for the leak proof transfer of fluids (such as steam, water, air or oil) to and from rotating machine shafts. The bearings fitted to the Rotary Union are standard ball bearings which are given their initial lubrication after assembly. Shield is fitted to the seal chamber side of the ball bearings for protection purpose from media flowing. This series are easily replaceable & serviceable used for water and environment of severe condition i.e poor water quality.

We also manufacture and supply Air Vacuum Rotary Union, Coolant Rotary Union, and Multi Passage Rotary Union as being topmost Rotary Union manufacturers in Mumbai as well as known as one of the most precise rotary Union manufacturing companies in India.

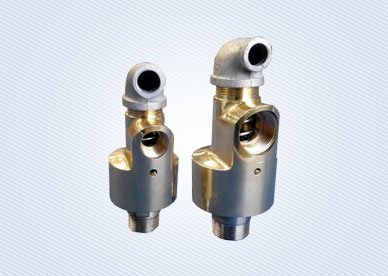

Water Service Rotary Union
(RT-101-Series)

Self supported rotary union
Single and dual flow provision
Radial and axial housing connection
Easy and quick replacement of seals
Reliable usage with poor water quality
Stainless steel internal parts
LH & RH – UNF Threads
LH & RH Metric Threads on the Rotor
BSP & NPT Threads on B-Port

Operating Data

Size:

1/4″ (DN08) – 2″ (DN50)

Parameter :

Max. Water Pressure : 50 bar.
Max. Temperature : 120°C
Max. Speed : 3500 rpm
Do not work with max. pressure at max. speed.

Material

Seal Faces : Cabon, SiC and TC
Elastomer : Viton, Neoprene, EPDM, NBR and Buna-N
MOC : SS 316, Brass, Carbon Steel.

Available Range

Threaded rotor mono flow and dual flow

Quick release rotor mono flow and dual flow

Flanged rotor mono flow and dual flow
