ELASTOMER BELLOW MECHANICAL SEALS

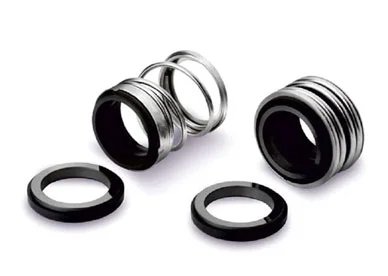

Type RT-R10/RT-R11

  • Single, low cost and mass production Mechanical Seal with Rubber Bellow.
  • Central Point Non-Clogging Coil Spring Seal.
  • Spring Design Seal is suitable for duel-direction of Shaft Rotation.
  • Bellow Design Seals for Pressure supported and eliminates folds.
  • Bellow Seals Protecting against Twisting.
  • Unitize, easy-to-fit design seals

Description

The Type RT-R10/RT-R11 is Rubber Bellow Mechanical Seal which is compact, unitized, single-spring elastomer bellows seal that offers maximum durability and performance.It is often found in water-based applications, such as wastewater treatment, potable water, HVAC, pool and spa and other general applications.And even with some Content with Abrasive and for a very wide operating condition designed for Centrifugal Pump.

We also manufacture and supply Single Spring Mechanical Seals, Multi Spring Mechanical Seals, Teflon Bellow Seals, Metal Bellow Seals and Reverse Balance Mechanical Seals as being top most mechanical seal manufacturers in Mumbai as well as known as one of the most precise mechanical seal manufacturing companies in India.

FAQ

  • It seals rotating shafts in pumps and industrial equipment.
  • The flexible elastomer bellow provides sealing without a separate dynamic O-ring on the shaft.
  • Commonly used for water, oil and other compatible fluids.
  • Check shaft diameter, pressure, temperature and RPM.
  • Select the bellow material according to the process fluid.
  • Existing seal dimensions or pump model can help identify the correct seal.
  • Common options include NBR, EPDM and FKM (Viton).
  • Material selection depends on the fluid, temperature and chemical compatibility.
  • The correct elastomer helps prevent swelling, hardening and premature seal failure.
  • Clean and inspect the shaft and seal chamber before installation.
  • Install the seal according to the specified shaft size and setting length.
  • Keep the sealing faces clean and properly aligned.
  • Check for leakage before normal operation.
  • Yes, replacement seals can be supplied according to the existing seal or pump.
  • Share the shaft size, old seal dimensions, model number, photo or drawing.
  • The replacement can be matched according to fluid, pressure, temperature and RPM.

Shaft Dia. : 10mm to 100 mm

Pressure : Up to 8 bar

Temperature : -20°C to 180°C

Speed: 3000 RPM

Seal Ring Faces : Carbon, SiC and TC

Seat Faces :Carbon, Ceramic, SiC and TC

Elastomer : Viton, Neoprene, EPDM, NBR and Buna-N

MOC : SS 304 / SS 316
