The Type RT-O48/W48 is multi spring mechanical sealis short length unit having O-ring or PTFE wedge as secondary member. PTFE wedge construction of the secondary sealing member provides universal service application in cryogenic, corrosive fluids and high temperature applications. By choosing suitable component materials, the multi spring seals can be adapted to operate with a wide range of liquids and operating conditions. All members of multiple spring mechanical seal is held with snap ring.
We also manufacture and supply Single Spring Mechanical Seals, Teflon Bellow Seals, Elastomer Bellow Mechanical Seals, Metal Bellow Seals and Reverse Balance Mechanical Seals as being top most mechanical seal manufacturers in Mumbai as well as known as one of the most precise mechanical seal manufacturing companies in India.
Multi Spring Mechanical Seals
(RT-O48/W48)
- Balance or Unbalance Pusher Seals.
- Single and Dual Configuration.
- Hydraulically Balanced Seal.
- ‘O’ Ring Seal design helps to eliminate scoring on Shaft and Sleeve.
- Wedge design use in Extreme Temperature, Chemical application.
- Independent on direction of rotation.
- Shaft Dia. : 10mm to 100mm
- Pressure : Up to 25 bar
- Temperature :-20 °C to 200 °C (Depending upon Elastomer)
- Speed: 3000 RPM
- Seal Ring Faces : Carbon, GFT, SiC and TC
- Seat Faces :Carbon, Ceramic, SiC and TC
- Elastomer : Viton, PTFE, GFT, EPDM, NBR, Buna-N and FFKM
- MOC : SS 316, Hast-C and Alloy-20
Products
-
Single Spring Seals
The Seal with Single Spring design and is depended on the Shaft Rotation. Looking from Sliding Face of the Rotating Seal Ring is designed.
-

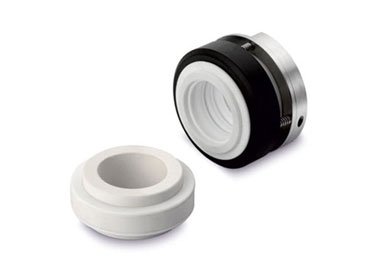

Teflon Bellow Seal
Teflon Mechanical Seals are Specially Designed for using Extremely Corrosive Duties. All Metal Components are including springs are Isolated.
-
Elastomer Bellow Seals
It is a Compact Single Spring Rubber Bellow Mechanical Seals for universal general purpose for Water / Water Based Solution like Oils.
-
Metal Bellow Seals
Metal Bellow mechanical seals are destined for petrochemical, chemical, pharmaceutical and food processing industry, for process pumps.
-
Reverse Balance Seals
It is Externally Mounted Reverse Balance design Seal which having 'O' Ring as a Secondary Sealing member.
